Micro Teide
Is it possible to combine two marble designs to create the perfect space? This application of White Teide and Palladium gray clearly shows that it is.
polished Façade and outdoor / indoor
| Características | Unidades | Valores típicos | |
| REACCIÓN AL FUEGO (EUROCLASSES) UNE-EN-ISO 9239-1:2002 e ISO 1716:2002 | EUROCLASES | A2fl s1 | |
| COEFICIENTE DE DILATACIÓN TÉRMICA UNE EN 14617-11:2006 | °C-1 | 14,8-26,4x10e-6 | |
| RESISTENCIA A LA FLEXIÓNUNE EN 14617-2:2005 | MPa | 24,3 -30,1 | |
| RESISTENCIA AL IMPACTO UNE EN 14617-9:2005 | J | 3-6 | |
| RESISTENCIA AL DESLIZAMIENTO UNE EN 14231:2004 | USRV | Pulido: 5-6 húmedo / 44-60 seco Mate: 10 húmedo / 55 seco Abujardado: 48 húmedo / 80 seco Silken: 21 húmedo / 55 seco | |
| ABSORCIÓN DE AGUA UNE EN 14617-1:2005 | % | 0,041-0,105 | |
| RESISTENCIA A LA COMPRESIÓN UNE EN 14617-15:2005 | MPa | 130,6-137,0 | |
| DENSIDAD APARENTE UNE EN 14617-1:2005 | g/cm3 | 2,45 – 2,49 | |
| RESISTENCIA A LA ABRASIÓN UNE-EN 14617-3:2005 | mm | 33-36 | |
| RESISTENCIA QUÍMICA UNE EN 14617-10:2005 | C1 C4 | Ácidos: C1 (Materiales que mantienen menos del 60% del valor de reflexión de referencia transcurridas 8 horas) Alcalinos: C4 (Materiales que mantienen al menos un 80% del valor de reflexión de referencia transcurridas 8 horas) | |
| DUREZA AL RAYADO UNE EN 101 Baldosas cerámicas. | MOHS | 3 – 4 |
Los valores en esta hoja técnica son indicativos y por lo tanto no vinculantes. Para mayor información póngase en contacto con nuestro departamento técnico.
Technical specifications

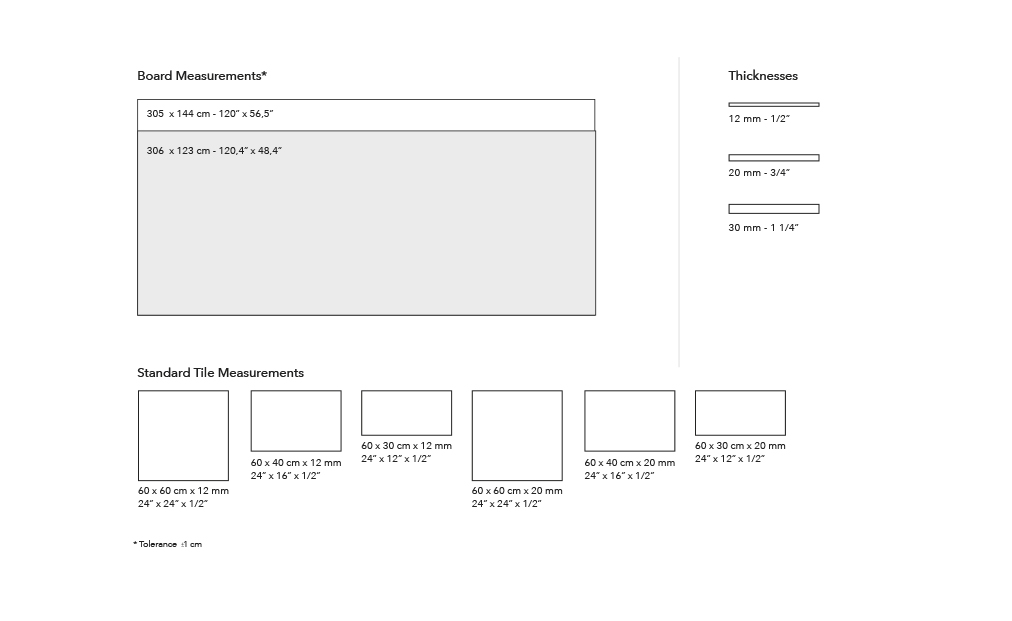

Sizes
Quality Certificates
 | Certificate for the terrazzo product range (floors) referring to building and construction products according to fire resistance classes, as tested by the CTF (Fire Technology Center of the Construction Technology Institute AIDICO, Spain) pursuant to the standard UNE-EN 13501-1:07. |
 | Greenguard mark This certificate issued by the Greenguard Environmental Institute guarantees that COMPAC products comply with indoor air quality standards covering volatile organic compounds (VOCs). The seals granted are Greenguard Indoor Air Quality Certified and Greenguard Children & Schools Certified, with the latter being one of the strictest standards in the industry. |
 | The U.S. Green Building Council (USGBC) is transforming the way we design, build, maintain and operate our buildings, homes and communities.USGBC is committed to a prosperous and sustainable future through cost-efficient and energy-saving green buildings. |
Quality
Downloads
- Terrazzo Colors Download
- Good Practices Guide Download
- Fitting instructions and maintenance Terrazzo Download
- Packing List 2015/01 Terrazzo Download
- Terrazzo Catalog 2015 Download
- Safety Data Sheet 2021 Terrazzo Download
- Technical Card 2015/01 Terrazzo Download
- Ventilated Façades Terrazzo Download
- Declaration of Performance Perlato, Negro Diamante, Verde Serpentina, Emperador, Coralito, Perlato Tipo A, Verde Serpentina Tipo A, Coralito Tipo A, Emperador Tipo A, Negro Tipo A , Classic, White, Classic Beige, Classic Brown, Classic Grey Download
- Declaration of Performance Marfil Stone, Marfil Albero, Blanco Micro, Blanco Aura, Afion, Dakar, Fidji, Samoa, Papua, Perla Claro, Beige Travertin, Rosa Elba, Siena, Nacarado, Caramelo, Nubia, Nubia Fog, Bering, Mandu, Auriel, Nilo, Moncayo, Argento, Beige Dune, White Faraya, Beige Faraya, White Teide, Marfil Fachada, Blanco Micro Fachadas, Afion Fachadas, Marfil Albero Fachadas, Blanco Aura Fachadas, Dakar Fachadas, Nacarado Fachadas, Caramelo Fachadas, Beige Faraya Fachada, Perla Claro Fachadas, Rosa Elba Fachadas, Sirocco, Anthracite, Palladium, Aluminum, Eneus, Sunset, Blanco Lhasa Download
- Declaration of Performance Crema Coto, Crema Valencia, Crema Altea, Crema Altea 2009, Panama, Crema Coto Fachada, Crema Altea Fachadas, Crema Valencia Fachadas, Crema Madani, Albufera, Jura Download
- Cleaning, conservation and maintenance manual for Terrazzo floors Terrazzo Download
