What is Terrazzo HPSTM?

Unleash the full potential of technological Terrazzo COMPAC with the High Performance Stone properties. The material that reinvents itself to offer a wide versatility of applications that provides a solution to all surfaces, including outdoor, countertops and bathroom partitions. Repaired and repolishable in a simple way.

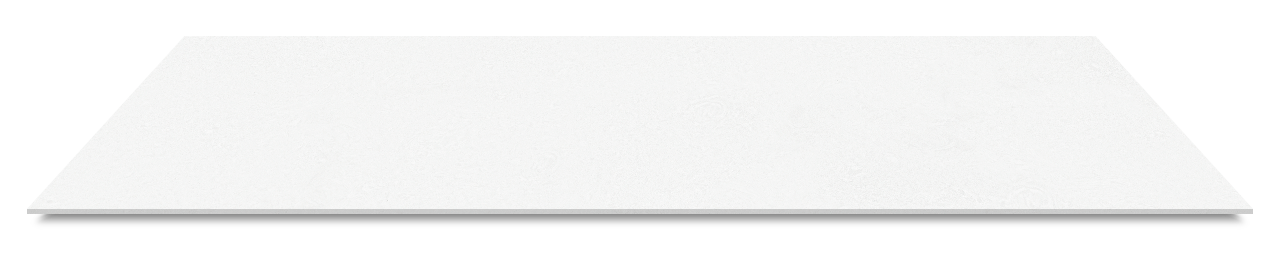

Terrazzo COMPAC Classic New White

Indoor Specifications for Terrazzo

img-1-esptec
MINIMAL WATER ABSORPTION
img-4-esptec
USES: Floors, walls, staircases, bathroom vanity tops, friezes, door and window frames, columns, fireplaces, furniture, façades and high pedestrian transit surfaces (stores, shopping centers, museums…)
img-500-esptec
FINISHES: Polished, matt, bush-hammered and Silken.
img-7-esptec

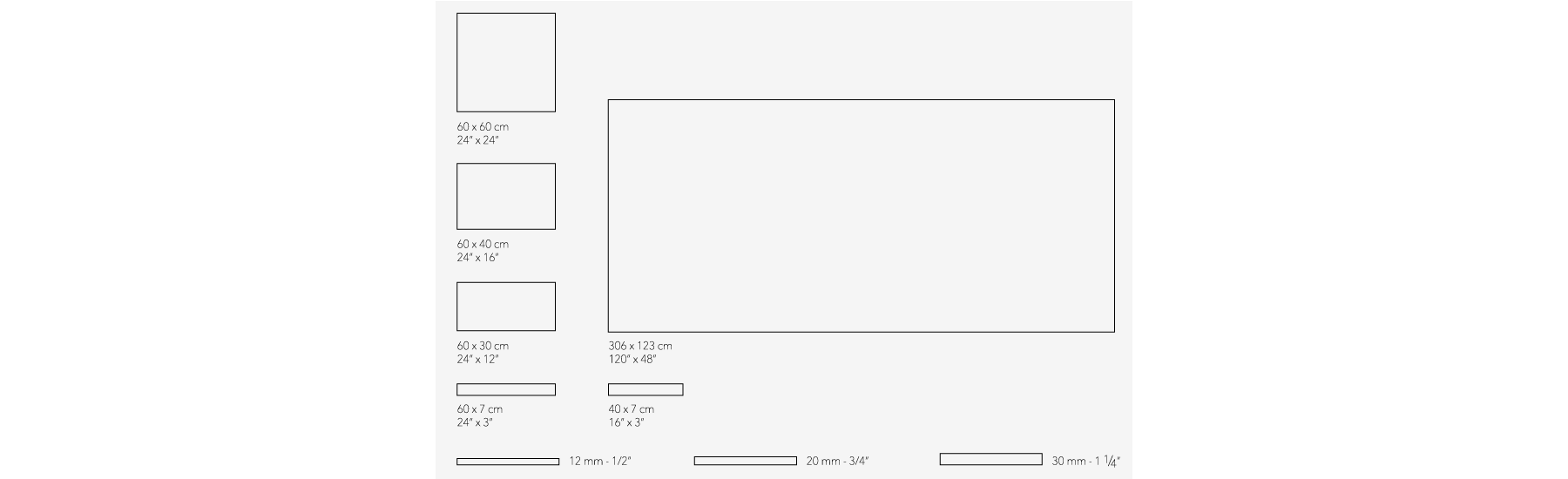

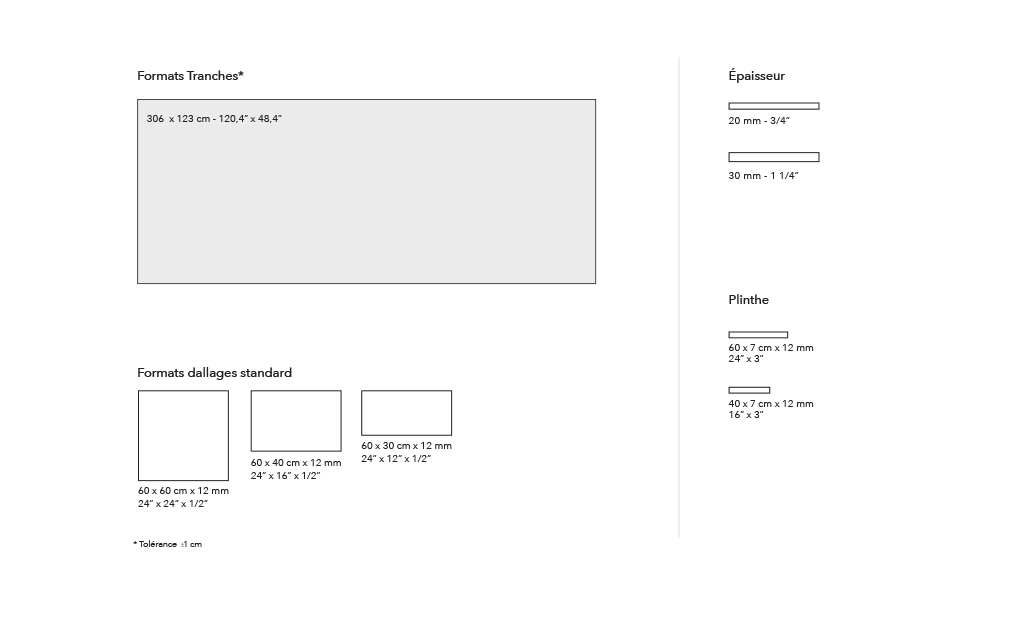

FORMATS:24”x24”; 24”x16” and slabs 120”x48”
img-9-esptec
STANDARDIZED THICKNESSES: 1/2”; 3/4” and 1 1/4” thicknesses depending on use and format
img-3-esptec
LOW COST maintenance and easy cleaning
img-200-esptec
LIGHTER: Savings in transport cost and easy installation
img-5-esptec
MAXIMUM impact and flexural resistance
img-60-esptecFIRE RESISTANCE classed as A2 (Euroclasses)
img-80-esptecCAN BE POLISHED AFTER INTENSE USE, recovering its original gloss
img-100-esptecSetting with ADHESIVE CEMENT
img-120-esptecTERRAZZO: 91-96% natural terrazzo, to which resins and other bonding agents are added

Outdoor Specifications for Terrazzo

Ventilated façades are a vertical siding system for buildings that uses an outer siding material enclosing a ventilated air chamber and a layer of continuous thermal insulation against the inner building wall.

For over 20 years COMPAC Terrazzo has been used as a siding material for ventilated façades in many countries. We now have over 1.5 million m2 of this material installed on building façades.

Some international companies specializing in ventilated façade systems, like the French company Vetisol, have even developed systems especially designed for use with COMPAC Terrazzo.

ENERGY EFFICIENCY: Ventilated façades contribute to reducing energy expenses in modern buildings. The thermal insulation is a continuous layer that prevents heat transfer from the metal framework edges and the vertical supports
PROTECTION AGAINST ATMOSPHERIC AGENTS: The outer leaf receives the direct impact of rain and sun, but since it is separated from the inner leaf, it minimizes these effects
ELIMINATION OF CONDENSATION AND HUMIDITY FROM THE “CHIMNEY EFFECT”. The air behind the outer leaf is heated and therefore rises, taking with it the humidity deposited on the thermal insulation
CHOICE OF AESTHETIC COMPOSITION: In view of the great flexibility in choosing siding modules, building façade design is made easy
IDEAL FOR RENOVATION WORK: With a simple assembly over an existing wall, a façade can be restored easily and quickly, improving aesthetic and technical conditions, with no need to disturb dwellers or users of the building



Competitive Advantages
Sizes
BeautyImpermeability
COMPAC Terrazzo presents a more homogeneous color, it is lighter and its aesthetic possibilities are more versatile than natural terrazzo.This material is resistant to water and to humidity. It is a vacuum-compacted material with zero porosity so it is impervious to water.



Advantages

Quality Certificates

Certificate for the quartz product range referring to building and construction products according to fire resistance classes, as tested by AFITILICOF, Center for Fire Testing and Research (Association for the Promotion of Research and Fire Safety Technology) pursuant to IMO Resolution A.653 as per IMO FTPC Code Resolution MSC 61 (67).
logo_calidad04
Contact with Food Certificate COMPAC Technological Quartz products comply with European Regulation CE 1935/2004 for objects intended for contact with food.
Greenguard mark This certificate issued by the Greenguard Environmental Institute guarantees that COMPAC products comply with indoor air quality standards covering volatile organic compounds (VOCs). The seals granted are Greenguard Indoor Air Quality Certified and Greenguard Children & Schools Certified, with the latter being one of the strictest standards in the industry.
NSF Certification NSF Certification, from a recognized non-profit organization in the United States certifying public health, safety and environmental standards, means that COMPAC products are safe and hygienic materials for use in direct contact with food and foodstuffs of all kinds.
The U.S. Green Building Council (USGBC) is transforming the way we design, build, maintain and operate our buildings, homes and communities.USGBC is committed to a prosperous and sustainable future through cost-efficient and energy-saving green buildings.
IQ Circular Science, the responsible sense of COMPAC, the philosophy of respect for the environment that we have been working on for years. All of our portfolio designs are produced sustainably with 100% renewable energy and 98% of the water used in the production process is recycled. In addition, IQ Circular Pro includes recycled raw materials. Similarly, all designs contain little or no Respirable Crystalline Silica (RCS).
Environmental Product Declarations (EPDs). Environmental Product Declarations (EPDs) present relevant and verified environmental information on products and services over their entire life cycle.



Quality Certificates

Technical documents

    Technical documents

  • Safety Data Sheet 2023 Terrazzo Download
  • Technical Card 05/2023 Terrazzo Download
  • Countertop design and installation manual Terrazzo Download
  • Warranty

  • Warranty terms and conditions Terrazzo Download
  • Declaration of performance

  • Declaration of Performance - Family 1 Terrazzo Download
  • Declaration of Performance - Family 2 Terrazzo Download
  • Declaration of Performance - Family 3 Terrazzo Download
  • Cleaning and preservation

  • Cleaning, conservation and maintenance manual for Terrazzo floors Terrazzo Download
